Flexible IDC Ribbon Cables

Flexible IDC Ribbon Cables

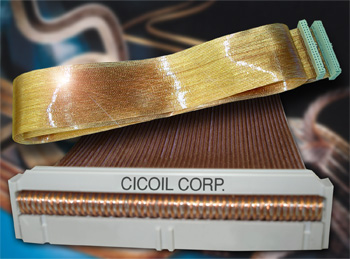

Cicoil's Flexible IDC Ribbon Cables have been designed for use on High-Precision Microelectronic Equipment Systems that require absolute reliability and zero failure. Unlike industry standard stiff ribbon cables that shed particulates and can only operate in moderate temperatures (-20 °C to +80 °C), the Cicoil version has been designed for tight routing, excessive temperatures (-65 °C to +260 °C) and Class 1 Clean Rooms.

In addition, Cicoil's ribbon cables helped America put a man on the moon, as the lightweight cables were integral to the first space walk in 1965, and the Lunar landing in 1969.

The Flexx-Sil™ jacketed 28 AWG Ribbon Cables are available with up to 64 conductors in .050" and 1 mm versions. Both cables meet the standard ribbon cable dimensions, and are completely compatible with any IDC connector.

Cicoil's IDC Cables are resistant to UV light, flames, steam, de-ionized water, acids, alcohol, autoclave, ozone, mechanical stress and many chemicals. When a lower friction surface is desired, Cicoil offers its SlideRite™ coating option by request.

Cicoil's Halogen-Free Ribbon Cables are UL & CSA Recognized, CE Conforming, RoHS & REACH Compliant and are cured continuously, with no debris or material contamination in an automated, climate controlled environment. In addition, the non-particulating IDC cables exceed the outgassing requirements of ASTM E595 and are also excellent for use in vacuum environments.

Cicoil has been a leader in designing and manufacturing high performance cable assemblies for over fifty years. The company's Patented Flexx-Sil™ Flat Cable Technology provides high flexibility, extremely long life, and they can withstand temperature extremes from -65 degrees to +260 degrees Celsius. Cicoil's flat cables are used in thousands of demanding applications; including aircraft fuel control cells, semiconductor automation, and the Space Shuttle. Cicoil designs and manufactures its Flexx-Sil™ jacketed cables and cable assemblies in an automated facility in Valencia, California. Cicoil's quality assurance system is certified to the ISO 9001 (AS9100) standard. Visit www.cicoil.com for more information, or call 661-295-1295 to speak to an application engineer.

Cicoil
24960 Avenue Tibbetts
Valencia, CA 91355
Phone: 661-295-1295
Email: This email address is being protected from spambots. You need JavaScript enabled to view it.
