Hydro Group Subsea Cable

Hydro Group Subsea Cable

Underwater Power and Communication Cables
Composite Optical / Electrical Cables
Armored and Braided Strain Bearing Cables, Tethers and Umbilicals
Neutrally, Positively, or Negatively Buoyant Cables and Tethers
Specialist Cable Design Service

Hydro Group designs, manufactures and tests electrical, optical and hybrid composite subsea cables, including tethers and underwater umbilicals for unique and challenging applications. Our state of the art manufacturing site offers insulating lines, lay-up machines, braiding lines, extrusion and cable armoring capabilities, and produces cables designed to withstand up to 600 bar pressure.

Applications Submarine Cables, Underwater Acoustic & Magnetic Range Cables, Towed Array Cables, ROV Tethers, Sonar Cables, Diploop Cables, Data Highway Umbilicals, CCP Cabling, Dynamic Umbilicals

Part Numbers
Specifications

Hydro Group Subsea Cable

Narrow Your Selection

Overall Diameter

Maximum Working Pressure

Overall Diameter

Maximum Working Pressure

Part Number
17.0 ±0.5 mm

1650 psi

CS000011

Details
Bulk Cable
Overall Diameter: 17.0 ±0.5 mm

Maximum Working Pressure: 1650 psi

Composition: 8 Twisted Screened Pairs (0.5 mm², medium density polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 1.75 mm)

Part Numbers Order Through

CS000011 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
11.3 ±0.5 mm

3000 psi

CS000013

Details
Bulk Cable
Overall Diameter: 11.3 ±0.5 mm

Maximum Working Pressure: 3000 psi

Composition: 8 (1.0 mm², medium density polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000013 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
12.6 ±0.5 mm

2500 psi

CS000021

Details
Bulk Cable
Overall Diameter: 12.6 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 4 Tinned Copper (2.5 mm², medium density polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 2.0 mm)

Part Numbers Order Through

CS000021 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

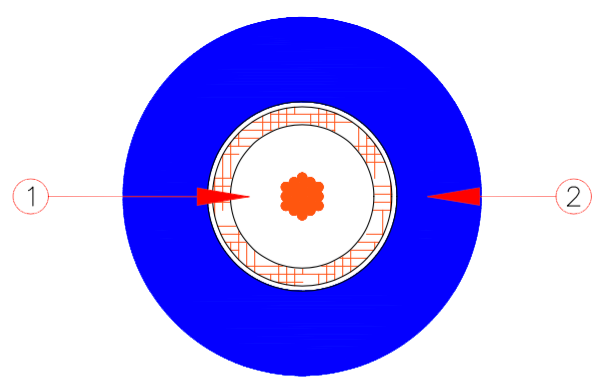

7.0 ±0.5 mm

1000 psi

CS000087

Details
Bulk Cable
Overall Diameter: 7.0 ±0.5 mm

Maximum Working Pressure: 1000 psi

Composition: 1 Coaxial (RG 58, 50 Ω)
Jacket: Polyurethane Sheath (R.T. 1.65 mm)

Part Numbers Order Through

CS000087 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
13.0 ±0.5 mm

1650 psi

CS000090

Details
Bulk Cable
Overall Diameter: 13.0 ±0.5 mm

Maximum Working Pressure: 1650 psi

Composition: 19 (0.5 mm², medium density polyethylene insulation)
Jacket: Overall Screen + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000090 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
22.0 ±1.0 mm

3000 psi

CS000098

Details
Bulk Cable
Overall Diameter: 22.0 ±1.0 mm

Maximum Working Pressure: 3000 psi

Composition: 3 Coaxial (75 Ω, RG59 B/U, solid core construction) + 4 Twisted Screened Quads (0.5 mm², 16/0.2 class 5 tinned copper wire, medium density polyethylene insulation) + 6 Tinned Copper (1.0 mm², 32/0.2 class 5 tinned copper wire, medium density polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 2.5 mm)

Part Numbers Order Through

CS000098 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
22.0 ±1.0 mm

9500 psi

CS000276

Details
Bulk Cable
Overall Diameter: 22.0 ±1.0 mm

Maximum Working Pressure: 9500 psi

Composition: 15 Twisted Screened Pairs (0.5 mm², medium density polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 2.1 mm)

Part Numbers Order Through

CS000276 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
20.0 ±0.5 mm

1250 psi

CS000354

Details
Bulk Cable
Overall Diameter: 20.0 ±0.5 mm

Maximum Working Pressure: 1250 psi

Composition: 4 Cores (1.0 mm², MDPE insulation, twisted together and bound in polyester tape) + 10 Cores (1.0 mm², MDPE insulation, twisted around central bundle and bound in polyester tape) + 16 Cores (1.0 mm², MDPE insulation, twisted around bundle and bound in polyester tape)
Jacket: Zero Halogen Flame Retardent Polyurethane Sheath (R.T. 1.9 mm)

Part Numbers Order Through

CS000354 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
18.0 ±0.5 mm

2500 psi

CS000360

Details
Bulk Cable
Overall Diameter: 18.0 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 37 Tinned Copper (0.5 mm², high density polyethylene insulation)
Jacket: Overall Screen + Polyurethane Sheath (R.T. 2.05 mm)

Part Numbers Order Through

CS000360 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
11.0 ±0.5 mm

4500 psi

CS000382

Details
Bulk Cable
Overall Diameter: 11.0 ±0.5 mm

Maximum Working Pressure: 4500 psi

Composition: 1 Twisted Screened Pair (1.34 mm², stranded tinned copper, medium density polyethylene insulation, aluminum tape + 1.34 mm², stranded tinned copper drain wire individual screen) + 1 Twisted Screened Pair (0.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.5 mm², stranded tinned copper drain wire individual screen) + 1 Twisted Pair (0.22 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Core (1.34 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Coaxial (75 Ω, RG 179)
Jacket: Water Blocking Compound + Collective Screen (aluminum tape + 0.22 mm², stranded tinned copper drain wire) + Polyurethane Sheath (R.T. 1.75 mm)

Part Numbers Order Through

CS000382 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
13.5 ±0.5 mm

4500 psi

CS000410

Details
Bulk Cable
Overall Diameter: 13.5 ±0.5 mm

Maximum Working Pressure: 4500 psi

Composition: 1 PVC Jacketed Twisted Screened Quad (0.22 mm², stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.22 mm², stranded tinned copper drain wire individual screen) + 3 Tinned Copper (0.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation) + 1 Coaxial (75 Ω RG179) + 1 Twisted Screened Pair (0.22 mm², stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.22 mm², stranded tinned copper drain wire individual screen) + 1 Twisted Quad (1.34 mm², stranded tinned copper, medium density polyethylene insulation)
Jacket: Water Blocking Compound + Collective Screen (aluminum tape + 1.0 class 5 stranded tinned copper drain wire) + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000410 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
14.1 ±0.5 mm

2500 psi

CS000434

Details
Bulk Cable
Overall Diameter: 14.1 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 1 Twisted Screened Pair (1.34 mm², stranded tinned copper, medium density polyethylene insulation, aluminum tape + 1.34 mm², stranded tinned copper drain wire individual screen) + 1 Twisted Screened Pair (0.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.5 mm², class 5 stranded tinned copper drain wire individual screen) + 1 Twisted Pair (0.22 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Core (1.34 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Coaxial (75 Ω, RG179)
Jacket: Water Blocking Compound + Collective Screen (aluminum tape + 0.22 mm², stranded tinned copper drain wire) + Polyurethane Inner Sheath (R.T. 1.0 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000434 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
11.5 ±0.5 mm

2500 psi

CS000589

Details
Bulk Cable
Overall Diameter: 11.5 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 2 Cores (1.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation) + 2 Twisted Screened Pairs (0.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.5 mm², class 5 stranded tinned copper drain wire individual screen)
Jacket: Collective Screen (aluminum tape + 0.22 mm², class 5 stranded tinned copper drain wire) + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000589 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
16.5 ±0.5 mm

2500 psi

CS000602

Details
Bulk Cable
Overall Diameter: 16.5 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 1 Twisted Screened Pair (1.5 mm², class 5 stranded tinned copper, ethylene propylene rubber insulation, water blocking compound, aluminum tape + 1.5 mm², class 5 stranded tinned copper drain wire screen)
Jacket: Polyurethane Inner Sheath (R.T. 1.2 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS000602 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
28.7 ±1.0 mm

3000 psi

CS000755

Details
Bulk Cable
Overall Diameter: 28.7 ±1.0 mm

Maximum Working Pressure: 3000 psi

Composition: 2 Twisted Screened Pairs (1.5 mm², class 5 stranded tinned copper, ethylene propylene rubber insulation, aluminum tape + 1.5 mm², class 5 stranded tinned copper drain wire individual screen)
Jacket: Water Blocking Compound + Polyurethane Bedding Sheath (R.T. 2.0 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 2.0 mm)

Part Numbers Order Through

CS000755 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
13.2 ±0.5 mm

2500 psi

CS000908

Details
Bulk Cable
Overall Diameter: 13.2 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 1 Twisted Screened Pair (1.34 mm², stranded tinned copper, medium density polyethylene insulation, aluminum tape + 1.34 mm², stranded tinned copper drain wire individual screen) + 1 Twisted Screened Pair (0.5 mm², class 5 stranded tinned copper, medium density polyethylene insulation, aluminum tape + 0.5 mm², class 5 stranded tinned copper drain wire individual screen) + 1 Twisted Pair (0.22 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Core (1.34 mm², stranded tinned copper, medium density polyethylene insulation) + 1 Coaxial (75 Ω, RG179)
Jacket: Water Blocking Compound + Collective Screen (aluminum tape + 0.22 mm², stranded tinned copper drain wire) + Vectran™ Fiber Braided Strength Member (minimum break load 1134 kgf) + Polyurethane Sheath (R.T. 2.0 mm)

Part Numbers Order Through

CS000908 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
18.2 ±0.5 mm

2500 psi

CS000911

Details
Bulk Cable
Overall Diameter: 18.2 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 4 Cores (1.5 mm², class 5 stranded tinned copper, ethylene propylene rubber insulation)
Jacket: Water Blocking Compound + Collective Screen (aluminum tape + 1.5 mm², class 5 stranded tinned copper drain wire) + Polyurethane Inner Sheath (R.T. 1.0 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 1.7 mm)

Part Numbers Order Through

CS000911 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
19.4 ±0.5 mm

2000 psi

CS000968

Details
Bulk Cable
Overall Diameter: 19.4 ±0.5 mm

Maximum Working Pressure: 2000 psi

Composition: 19 Cores (1.5 mm², 30/0.25, MDPE insulation)
Jacket: Polyurethane Sheath (R.T. 2.0 mm)

Part Numbers Order Through

CS000968 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
18.2 ±0.5 mm

2500 psi

CS001235

Details
Bulk Cable
Overall Diameter: 18.2 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 7 Cores (1.5 mm², class 5 stranded tinned copper, cross-linked polyethylene insulation)
Jacket: Collective Screen (aluminum tape + 1.5 mm², class 5 stranded tinned copper drain wire) + Water Blocking Compound + Polyurethane Inner Sheath (R.T. 1.0 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 2.5 mm)

Part Numbers Order Through

CS001235 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
22.3 ±1.0 mm

2500 psi

CS001236

Details
Bulk Cable
Overall Diameter: 22.3 ±1.0 mm

Maximum Working Pressure: 2500 psi

Composition: 12 Cores (1.5 mm², class 5 stranded tinned copper, cross linked polyethylene insulation)
Jacket: Collective Screen (aluminum tape + 1.5 mm², class 5 stranded tinned copper drain wire) + Water Blocking Compound + Polyurethane Inner Sheath (R.T. 1.5 mm) + Galvanized Steel Wire Braid + Polyurethane Sheath (R.T. 1.55 mm)

Part Numbers Order Through

CS001236 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
11.6 ±0.5 mm

2500 psi

CS002102

Details
Bulk Cable
Overall Diameter: 11.6 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 4 Cores (2.5 mm², class 5 stranded tinned copper, cross linked polyethylene insulation)
Jacket: Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS002102 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
16.4 ±0.5 mm

2500 psi

CS005624

Details
Bulk Cable
Overall Diameter: 16.4 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 4 Tinned Copper (1.0 mm², EPR insulation) + 1 Jacketed, Gel-filled Stainless Steel Tube with min. 4 Fibers (9/125 single-mode) + 1 Jacketed, Gel-filled Stainless Steel Tube with min. 4 fibers (50/125 multimode)
Jacket: High Shore Hardness Polyurethane Bedding Sheath (R.T. 1.5 mm) + Vectran™ Fiber Braid (MBL 2268 kg) + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS005624 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
19.8 ±0.5 mm

2500 psi

CS007318

Details
Bulk Cable
Overall Diameter: 19.8 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 8 Cores (1.5 mm², class 5 tinned copper, cross-linked polyethylene insulation) + Vectran™ Fiber Braided Strength Member (minimum break load 567 kgf) + 1 Cat 7 F/STP Component
Jacket: High Shore Hardness Polyurethane Bedding Sheath (R.T. 1.5 mm) + Polyurethane Sheath (R.T. 2.0 mm)

Part Numbers Order Through

CS007318 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
16.4 ±0.5 mm

2500 psi

CS007747

Details
Bulk Cable
Overall Diameter: 16.4 ±0.5 mm

Maximum Working Pressure: 2500 psi

Composition: 8 Twisted Screened Pairs (0.5 mm², class 5 tinned copper wire, high density polyethylene insulation)
Jacket: Polyurethane Filler Jacket + Polyurethane Sheath (R.T. 1.5 mm)

Part Numbers Order Through

CS007747 Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
12.0 +0.0/−0.5 mm

10000 psi

CS0345ZH

Details
Bulk Cable
Overall Diameter: 12.0 +0.0/−0.5 mm

Maximum Working Pressure: 10000 psi

Composition: 2 Twisted Screened Water Blocked Pairs (1.0 mm², medium density polyethylene insulation)
Jacket: Wax Water Blocking Compound + Water Blocking Tape + Polyurethane Sheath (R.T. 1.4 mm)

Part Numbers Order Through

CS0345ZH Cicoil
E-mail or Speak to an Engineer: 661-295-1295 Option 4

Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
Environmental
- Extreme Environments: Pressure rated for underwater use
