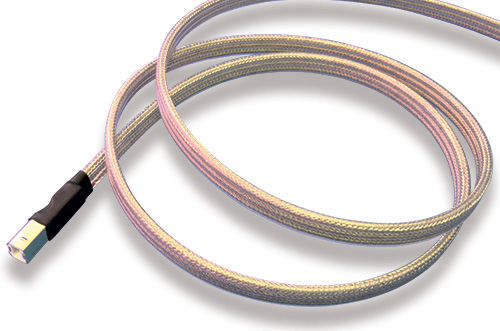

FireWire Cable

FireWire Cable
  • Ideal for High Performance Data Transmission
  • Ultra Flexible Cable for Confined Area and Continuous Motion
  • Exceed FireWire Specs in a Flat, Compact Package

Comprised of 2 individually shielded 22 AWG power wires and 2 individually twisted shielded pairs of 28 AWG 100 ohm twinaxial configuration, Cicoil’s Flexx-Sil™ jacketed FireWire cables are designed for highly demanding applications. Unlike typical FireWire cables, the Cicoil cable has been designed for high flexibility, mechanical stress, temperature extremes and harsh environments. And the flat cable construction guarantees clear, high speed data transmission, even in the toughest of environments.

Applications Indoor and Outdoor FireWire Applications

FireWire Cable
  • Bulk Cable

    • Amp Rating - Power: 8
    • Amp Rating - Signal: 5
    • Conductor Gauge - Power: 22 AWG/2c
    • Conductor Gauge - Signal: 28 AWG/1 pr
    • A - Width (inches): 0.48
    • B - Height (inches): 0.18
    FW-1000
    Part Numbers Price per foot
    FW-1000 LOGIN Order Now

    Complete Assemblies

    Signal (J1): FireWire, P/N 154-FWW15-E FW-1000
    Cable Length (ft) Part Numbers Price
    3 FW-1000-CA003 LOGIN Buy Now
    6 FW-1000-CA006 LOGIN Buy Now
    12 FW-1000-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Shielding: Ultra flexible, braided shields, with 90% nominal coverage
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Flex Life: 10,000,000 cycles nominal
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
