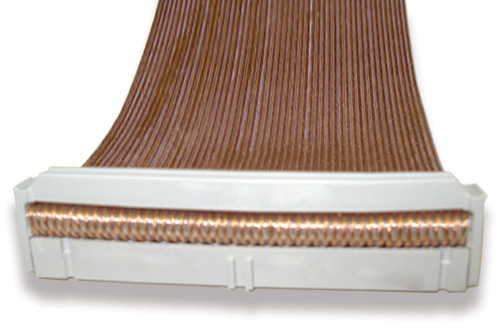

Hi-Flex, Hi-Temp IDC Ribbon Cable

Hi-Flex, Hi-Temp IDC Ribbon Cable
  • Ultra Flexible Ribbon Cable for standard IDC Connectors
  • Available with up to 64 Conductors in .050˝ or 1mm Pitch
  • -65°C to +260°C Rating – Ideal for the Harshest Environments

Cicoil’s high performance line of flat ribbon cable is ideal for electronic applications that require better flexibility, broader temperature and harsh environment capabilities than those offered by PVC or other ribbon cables. Cicoil’s patented Flexx-Sil™ jacket provides the highest flex, highest performance ribbon cable available.

Applications Aerospace, Robotics, Medical, Semiconductor, Packaging, Surgical Systems

Hi-Flex, Hi-Temp IDC Ribbon Cable
  • Narrow Your Selection

    Gauge Pitch
    No. of Conductors
    Gauge Pitch
    No. of Conductors
    Part Number
    28 AWG .050"
    10
    310J101-10

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 10
    • Amp Rating: 5
    • A - Width (inches): 0.50
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 0.45
    310J101-10
    Part Numbers Price per foot
    310J101-10 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-10
    Cable Length (ft) Part Numbers Price
    3 310J101-10-CA003 LOGIN Buy Now
    6 310J101-10-CA006 LOGIN Buy Now
    12 310J101-10-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    14
    310J101-14

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 14
    • Amp Rating: 5
    • A - Width (inches): 0.70
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 0.65
    310J101-14
    Part Numbers Price per foot
    310J101-14 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-14
    Cable Length (ft) Part Numbers Price
    3 310J101-14-CA003 LOGIN Buy Now
    6 310J101-14-CA006 LOGIN Buy Now
    12 310J101-14-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    16
    310J101-16

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 16
    • Amp Rating: 5
    • A - Width (inches): 0.80
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 0.75
    310J101-16
    Part Numbers Price per foot
    310J101-16 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-16
    Cable Length (ft) Part Numbers Price
    3 310J101-16-CA003 LOGIN Buy Now
    6 310J101-16-CA006 LOGIN Buy Now
    12 310J101-16-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    20
    310J101-20

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 20
    • Amp Rating: 5
    • A - Width (inches): 1.00
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 0.95
    310J101-20
    Part Numbers Price per foot
    310J101-20 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-20
    Cable Length (ft) Part Numbers Price
    3 310J101-20-CA003 LOGIN Buy Now
    6 310J101-20-CA006 LOGIN Buy Now
    12 310J101-20-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    26
    310J101-26

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 26
    • Amp Rating: 5
    • A - Width (inches): 1.30
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 1.25
    310J101-26
    Part Numbers Price per foot
    310J101-26 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-26
    Cable Length (ft) Part Numbers Price
    3 310J101-26-CA003 LOGIN Buy Now
    6 310J101-26-CA006 LOGIN Buy Now
    12 310J101-26-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    28
    310J101-28

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 28
    • Amp Rating: 5
    • A - Width (inches): 1.40
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 1.35
    310J101-28
    Part Numbers Price per foot
    310J101-28 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-28
    Cable Length (ft) Part Numbers Price
    3 310J101-28-CA003 LOGIN Order Now
    6 310J101-28-CA006 LOGIN Order Now
    12 310J101-28-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    30
    310J101-30

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 30
    • Amp Rating: 5
    • A - Width (inches): 1.50
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 1.45
    310J101-30
    Part Numbers Price per foot
    310J101-30 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-30
    Cable Length (ft) Part Numbers Price
    3 310J101-30-CA003 LOGIN Order Now
    6 310J101-30-CA006 LOGIN Order Now
    12 310J101-30-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    34
    310J101-34

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 34
    • Amp Rating: 5
    • A - Width (inches): 1.70
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 1.65
    310J101-34
    Part Numbers Price per foot
    310J101-34 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-34
    Cable Length (ft) Part Numbers Price
    3 310J101-34-CA003 LOGIN Order Now
    6 310J101-34-CA006 LOGIN Order Now
    12 310J101-34-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    40
    310J101-40

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 40
    • Amp Rating: 5
    • A - Width (inches): 2.00
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 1.95
    310J101-40
    Part Numbers Price per foot
    310J101-40 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-40
    Cable Length (ft) Part Numbers Price
    3 310J101-40-CA003 LOGIN Order Now
    6 310J101-40-CA006 LOGIN Order Now
    12 310J101-40-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    44
    310J101-44

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 44
    • Amp Rating: 5
    • A - Width (inches): 2.20
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 2.15
    310J101-44
    Part Numbers Price per foot
    310J101-44 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-44
    Cable Length (ft) Part Numbers Price
    3 310J101-44-CA003 LOGIN Order Now
    6 310J101-44-CA006 LOGIN Order Now
    12 310J101-44-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    50
    310J101-50

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 50
    • Amp Rating: 5
    • A - Width (inches): 2.50
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 2.45
    310J101-50
    Part Numbers Price per foot
    310J101-50 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-50
    Cable Length (ft) Part Numbers Price
    3 310J101-50-CA003 LOGIN Order Now
    6 310J101-50-CA006 LOGIN Order Now
    12 310J101-50-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    60
    310J101-60

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 60
    • Amp Rating: 5
    • A - Width (inches): 3.00
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 2.95
    310J101-60
    Part Numbers Price per foot
    310J101-60 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-60
    Cable Length (ft) Part Numbers Price
    3 310J101-60-CA003 LOGIN Order Now
    6 310J101-60-CA006 LOGIN Order Now
    12 310J101-60-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG .050"
    64
    310J101-64

    Bulk Cable

    • Gauge Pitch: 28 AWG .050"
    • No. of Conductors: 64
    • Amp Rating: 5
    • A - Width (inches): 3.20
    • B - Height (inches): 0.04 max.
    • C - Span (inches): 3.15
    310J101-64
    Part Numbers Price per foot
    310J101-64 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 71602-00XX 310J101-64
    Cable Length (ft) Part Numbers Price
    3 310J101-64-CA003 LOGIN Order Now
    6 310J101-64-CA006 LOGIN Order Now
    12 310J101-64-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    10
    666K101-10

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 10
    • Amp Rating: 5
    • A - Width (mm): 10
    • B - Height (mm): 0.94
    • C - Span (mm): 9
    666K101-10
    Part Numbers Price per foot
    666K101-10 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-10
    Cable Length (ft) Part Numbers Price
    3 666K101-10-CA003 LOGIN Order Now
    6 666K101-10-CA006 LOGIN Order Now
    12 666K101-10-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    16
    666K101-16

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 16
    • Amp Rating: 5
    • A - Width (mm): 16
    • B - Height (mm): 0.94
    • C - Span (mm): 15
    666K101-16
    Part Numbers Price per foot
    666K101-16 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-16
    Cable Length (ft) Part Numbers Price
    3 666K101-16-CA003 LOGIN Order Now
    6 666K101-16-CA006 LOGIN Order Now
    12 666K101-16-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    20
    666K101-20

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 20
    • Amp Rating: 5
    • A - Width (mm): 20
    • B - Height (mm): 0.94
    • C - Span (mm): 19
    666K101-20
    Part Numbers Price per foot
    666K101-20 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-20
    Cable Length (ft) Part Numbers Price
    3 666K101-20-CA003 LOGIN Order Now
    6 666K101-20-CA006 LOGIN Order Now
    12 666K101-20-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    26
    666K101-26

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 26
    • Amp Rating: 5
    • A - Width (mm): 26
    • B - Height (mm): 0.94
    • C - Span (mm): 25
    666K101-26
    Part Numbers Price per foot
    666K101-26 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-26
    Cable Length (ft) Part Numbers Price
    3 666K101-26-CA003 LOGIN Order Now
    6 666K101-26-CA006 LOGIN Order Now
    12 666K101-26-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    30
    666K101-30

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 30
    • Amp Rating: 5
    • A - Width (mm): 30
    • B - Height (mm): 0.94
    • C - Span (mm): 29
    666K101-30
    Part Numbers Price per foot
    666K101-30 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-30
    Cable Length (ft) Part Numbers Price
    3 666K101-30-CA003 LOGIN Order Now
    6 666K101-30-CA006 LOGIN Order Now
    12 666K101-30-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    34
    666K101-34

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 34
    • Amp Rating: 5
    • A - Width (mm): 34
    • B - Height (mm): 0.94
    • C - Span (mm): 33
    666K101-34
    Part Numbers Price per foot
    666K101-34 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-34
    Cable Length (ft) Part Numbers Price
    3 666K101-34-CA003 LOGIN Order Now
    6 666K101-34-CA006 LOGIN Order Now
    12 666K101-34-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    40
    666K101-40

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 40
    • Amp Rating: 5
    • A - Width (mm): 40
    • B - Height (mm): 0.94
    • C - Span (mm): 39
    666K101-40
    Part Numbers Price per foot
    666K101-40 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-40
    Cable Length (ft) Part Numbers Price
    3 666K101-40-CA003 LOGIN Order Now
    6 666K101-40-CA006 LOGIN Order Now
    12 666K101-40-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    44
    666K101-44

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 44
    • Amp Rating: 5
    • A - Width (mm): 44
    • B - Height (mm): 0.94
    • C - Span (mm): 43
    666K101-44
    Part Numbers Price per foot
    666K101-44 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-44
    Cable Length (ft) Part Numbers Price
    3 666K101-44-CA003 LOGIN Order Now
    6 666K101-44-CA006 LOGIN Order Now
    12 666K101-44-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    28 AWG 1mm
    50
    666K101-50

    Bulk Cable

    • Gauge Pitch: 28 AWG 1mm
    • No. of Conductors: 50
    • Amp Rating: 5
    • A - Width (mm): 50
    • B - Height (mm): 0.94
    • C - Span (mm): 49
    666K101-50
    Part Numbers Price per foot
    666K101-50 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Berg or equivalent (XX = Position Quantity) P/N 89361-1XX 666K101-50
    Cable Length (ft) Part Numbers Price
    3 666K101-50-CA003 LOGIN Order Now
    6 666K101-50-CA006 LOGIN Order Now
    12 666K101-50-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded copper
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +260°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
Cicoil
24960 Avenue Tibbetts
Valencia, CA 91355
Phone: 661-295-1295
Email: flatcable@cicoil.com
