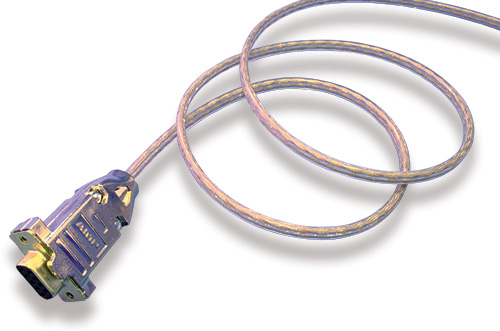

Hi-Flex Shielded Signal Cable

Hi-Flex Shielded Signal Cable
  • Ideal for High Performance Data Transmission Applications
  • Ultra Flexible for Confined Area and Continuous Motion
  • Twisted Shielded Signal Pairs for Excellent EMI/RFI Protection

Cicoil’s Hi-Flex Shielded Signal cables are ideal for the most demanding data transmission applications. Cicoil’s patented extrusion process allows individually shielded pairs to be placed in a highly flexible flat profile, while exceeding electrical and signal requirements. These flat cable designs are an excellent alternative to bulky round and stiffer PVC or Teflon flat cable designs.

Applications Sensors, Encoders, Actuators, Resolvers

Hi-Flex Shielded Signal Cable
  • Narrow Your Selection

    Amp Rating
    No. of Paired Conductors
    Amp Rating
    No. of Paired Conductors
    Part Number
    5
    1
    969M101-28-1TPS

    Bulk Cable

    • Amp Rating: 5
    • No. of Paired Conductors: 1
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.12
    • B - Height (inches): 0.12
    969M101-28-1TPS
    Part Numbers Price per foot
    969M101-28-1TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-1TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-28-1TPS-CA003 LOGIN Order Now
    6 969M101-28-1TPS-CA006 LOGIN Order Now
    12 969M101-28-1TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    2
    969M101-28-2TPS

    Bulk Cable

    • Amp Rating: 5
    • No. of Paired Conductors: 2
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.21
    • B - Height (inches): 0.12
    969M101-28-2TPS
    Part Numbers Price per foot
    969M101-28-2TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-2TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-28-2TPS-CA003 LOGIN Buy Now
    6 969M101-28-2TPS-CA006 LOGIN Buy Now
    12 969M101-28-2TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    3
    969M101-28-3TPS

    Bulk Cable

    • Amp Rating: 5
    • No. of Paired Conductors: 3
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.31
    • B - Height (inches): 0.12
    969M101-28-3TPS
    Part Numbers Price per foot
    969M101-28-3TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-3TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-28-3TPS-CA003 LOGIN Buy Now
    6 969M101-28-3TPS-CA006 LOGIN Buy Now
    12 969M101-28-3TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    5
    969M101-28-5TPS

    Bulk Cable

    • Amp Rating: 5
    • No. of Paired Conductors: 5
    • Conductor Gauge: 28 AWG
    • A - Width (inches): 0.21
    • B - Height (inches): 0.21
    969M101-28-5TPS
    Part Numbers Price per foot
    969M101-28-5TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 969M101-28-5TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-28-5TPS-CA003 LOGIN Buy Now
    6 969M101-28-5TPS-CA006 LOGIN Buy Now
    12 969M101-28-5TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    1
    969M101-26-1TPS

    Bulk Cable

    • Amp Rating: 6
    • No. of Paired Conductors: 1
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.13
    • B - Height (inches): 0.13
    969M101-26-1TPS
    Part Numbers Price per foot
    969M101-26-1TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-1TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-26-1TPS-CA003 LOGIN Buy Now
    6 969M101-26-1TPS-CA006 LOGIN Buy Now
    12 969M101-26-1TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    2
    969M101-26-2TPS

    Bulk Cable

    • Amp Rating: 6
    • No. of Paired Conductors: 2
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.23
    • B - Height (inches): 0.13
    969M101-26-2TPS
    Part Numbers Price per foot
    969M101-26-2TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-2TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-26-2TPS-CA003 LOGIN Buy Now
    6 969M101-26-2TPS-CA006 LOGIN Buy Now
    12 969M101-26-2TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    3
    969M101-26-3TPS

    Bulk Cable

    • Amp Rating: 6
    • No. of Paired Conductors: 3
    • Conductor Gauge: 26 AWG
    • A - Width (inches): 0.32
    • B - Height (inches): 0.13
    969M101-26-3TPS
    Part Numbers Price per foot
    969M101-26-3TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-26-3TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-26-3TPS-CA003 LOGIN Buy Now
    6 969M101-26-3TPS-CA006 LOGIN Buy Now
    12 969M101-26-3TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    7
    1
    969M101-24-1TPS

    Bulk Cable

    • Amp Rating: 7
    • No. of Paired Conductors: 1
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.14
    • B - Height (inches): 0.14
    969M101-24-1TPS
    Part Numbers Price per foot
    969M101-24-1TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-1TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-24-1TPS-CA003 LOGIN Buy Now
    6 969M101-24-1TPS-CA006 LOGIN Buy Now
    12 969M101-24-1TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    7
    2
    969M101-24-2TPS

    Bulk Cable

    • Amp Rating: 7
    • No. of Paired Conductors: 2
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.25
    • B - Height (inches): 0.14
    969M101-24-2TPS
    Part Numbers Price per foot
    969M101-24-2TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-2TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-24-2TPS-CA003 LOGIN Order Now
    6 969M101-24-2TPS-CA006 LOGIN Order Now
    12 969M101-24-2TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    7
    3
    969M101-24-3TPS

    Bulk Cable

    • Amp Rating: 7
    • No. of Paired Conductors: 3
    • Conductor Gauge: 24 AWG
    • A - Width (inches): 0.36
    • B - Height (inches): 0.14
    969M101-24-3TPS
    Part Numbers Price per foot
    969M101-24-3TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-24-3TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-24-3TPS-CA003 LOGIN Order Now
    6 969M101-24-3TPS-CA006 LOGIN Order Now
    12 969M101-24-3TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    1
    969M101-22-1TPS

    Bulk Cable

    • Amp Rating: 8
    • No. of Paired Conductors: 1
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.15
    • B - Height (inches): 0.15
    969M101-22-1TPS
    Part Numbers Price per foot
    969M101-22-1TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-1TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-22-1TPS-CA003 LOGIN Buy Now
    6 969M101-22-1TPS-CA006 LOGIN Buy Now
    12 969M101-22-1TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    2
    969M101-22-2TPS

    Bulk Cable

    • Amp Rating: 8
    • No. of Paired Conductors: 2
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.27
    • B - Height (inches): 0.15
    969M101-22-2TPS
    Part Numbers Price per foot
    969M101-22-2TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-2TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-22-2TPS-CA003 LOGIN Order Now
    6 969M101-22-2TPS-CA006 LOGIN Order Now
    12 969M101-22-2TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    3
    969M101-22-3TPS

    Bulk Cable

    • Amp Rating: 8
    • No. of Paired Conductors: 3
    • Conductor Gauge: 22 AWG
    • A - Width (inches): 0.40
    • B - Height (inches): 0.15
    969M101-22-3TPS
    Part Numbers Price per foot
    969M101-22-3TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - TE, P/N 745254-2; 25-Pos D-SUB Housing - TE, P/N 5205208-1 969M101-22-3TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-22-3TPS-CA003 LOGIN Order Now
    6 969M101-22-3TPS-CA006 LOGIN Order Now
    12 969M101-22-3TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    15
    1
    969M101-18-1TPS

    Bulk Cable

    • Amp Rating: 15
    • No. of Paired Conductors: 1
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.21
    • B - Height (inches): 0.21
    969M101-18-1TPS
    Part Numbers Price per foot
    969M101-18-1TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 9-Pos Housing - MOLEX, P/N 3092092 969M101-18-1TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-18-1TPS-CA003 LOGIN Buy Now
    6 969M101-18-1TPS-CA006 LOGIN Buy Now
    12 969M101-18-1TPS-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    15
    2
    969M101-18-2TPS

    Bulk Cable

    • Amp Rating: 15
    • No. of Paired Conductors: 2
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.38
    • B - Height (inches): 0.21
    969M101-18-2TPS
    Part Numbers Price per foot
    969M101-18-2TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 9-Pos Housing - MOLEX, P/N 3092092 969M101-18-2TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-18-2TPS-CA003 LOGIN Order Now
    6 969M101-18-2TPS-CA006 LOGIN Order Now
    12 969M101-18-2TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    15
    3
    969M101-18-3TPS

    Bulk Cable

    • Amp Rating: 15
    • No. of Paired Conductors: 3
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.56
    • B - Height (inches): 0.21
    969M101-18-3TPS
    Part Numbers Price per foot
    969M101-18-3TPS LOGIN Buy Now

    Complete Assemblies

    Signal (J1): Gold Contacts - MOLEX, P/N 02-09-6110; 9-Pos Housing - MOLEX, P/N 3092092 969M101-18-3TPS
    Cable Length (ft) Part Numbers Price
    3 969M101-18-3TPS-CA003 LOGIN Order Now
    6 969M101-18-3TPS-CA006 LOGIN Order Now
    12 969M101-18-3TPS-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Shielding: Ultra flexible, braided shields, with 90% nominal coverage
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Flex Life: 10,000,000 cycles nominal
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
Cicoil
24960 Avenue Tibbetts
Valencia, CA 91355
Phone: 661-295-1295
Email: flatcable@cicoil.com
