Controlled Impedance Cable

Controlled Impedance Cable
  • Individually Controlled Impedance Signals with Frequencies Up to 1 GHz
  • Excellent Alternative to Coaxial Cables in Many Applications
  • Choice of 1 - 8 Individually Shielded 100 Ohm Twinax Conductors

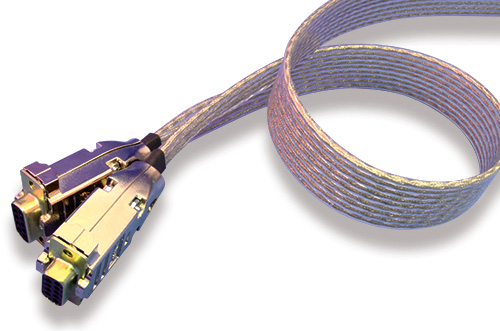

Cicoil’s Controlled Impedance Cable is a highly flexible cable with individually controlled impedance signals. This 30 AWG/1 twisted shielded pair cable can be used as a more durable and flexible alternative to standard twisted pair and coaxial cables. Unlike bulky round and non-flexible woven cables, the Cicoil design can be used in applications requiring submersion in water, exposure to harsh weather and rugged environments. And the flat cable construction guarantees clear, high speed data transmission.

Applications Sensors, Encoders, Actuators, Resolvers

Controlled Impedance Cable
  • Narrow Your Selection

    Amp Rating
    No. of Paired Conductors
    Amp Rating
    No. of Paired Conductors
    Part Number
    3
    1
    CIM-100-01

    Bulk Cable

    • Amp Rating: 3
    • No. of Paired Conductors: 1
    • Conductor Gauge: 30 AWG
    • No. of Conductors: 2
    • A - Width (inches): 0.15
    • B - Height (inches): 0.15
    CIM-100-01
    Part Numbers Price per foot
    CIM-100-01 LOGIN Order Now

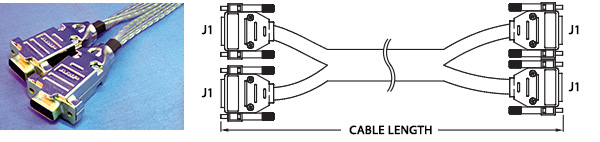

    Complete Assemblies

    Signal (J1): D-SUB, P/N 205203-8 CIM-100-01
    Cable Length (ft) Part Numbers Price
    3 CIM-100-01-CA003 LOGIN Buy Now
    6 CIM-100-01-CA006 LOGIN Buy Now
    12 CIM-100-01-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    2
    CIM-100-02

    Bulk Cable

    • Amp Rating: 3
    • No. of Paired Conductors: 2
    • Conductor Gauge: 30 AWG
    • No. of Conductors: 4
    • A - Width (inches): 0.28
    • B - Height (inches): 0.15
    CIM-100-02
    Part Numbers Price per foot
    CIM-100-02 LOGIN Order Now

    Complete Assemblies

    Signal (J1): D-SUB, P/N 205203-8 CIM-100-02
    Cable Length (ft) Part Numbers Price
    3 CIM-100-02-CA003 LOGIN Buy Now
    6 CIM-100-02-CA006 LOGIN Buy Now
    12 CIM-100-02-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    4
    CIM-100-04

    Bulk Cable

    • Amp Rating: 3
    • No. of Paired Conductors: 4
    • Conductor Gauge: 30 AWG
    • No. of Conductors: 8
    • A - Width (inches): 0.54
    • B - Height (inches): 0.15
    CIM-100-04
    Part Numbers Price per foot
    CIM-100-04 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): D-SUB, P/N 205203-8 CIM-100-04
    Cable Length (ft) Part Numbers Price
    3 CIM-100-04-CA003 LOGIN Buy Now
    6 CIM-100-04-CA006 LOGIN Buy Now
    12 CIM-100-04-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    6
    CIM-100-06

    Bulk Cable

    • Amp Rating: 3
    • No. of Paired Conductors: 6
    • Conductor Gauge: 30 AWG
    • No. of Conductors: 12
    • A - Width (inches): 0.81
    • B - Height (inches): 0.15
    CIM-100-06
    Part Numbers Price per foot
    CIM-100-06 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): D-SUB, P/N 205203-8 CIM-100-06
    Cable Length (ft) Part Numbers Price
    3 CIM-100-06-CA003 LOGIN Buy Now
    6 CIM-100-06-CA006 LOGIN Buy Now
    12 CIM-100-06-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    8
    CIM-100-08

    Bulk Cable

    • Amp Rating: 3
    • No. of Paired Conductors: 8
    • Conductor Gauge: 30 AWG
    • No. of Conductors: 16
    • A - Width (inches): 1.07
    • B - Height (inches): 0.15
    CIM-100-08
    Part Numbers Price per foot
    CIM-100-08 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): D-SUB, P/N 205203-8 CIM-100-08
    Cable Length (ft) Part Numbers Price
    3 CIM-100-08-CA003 LOGIN Buy Now
    6 CIM-100-08-CA006 LOGIN Buy Now
    12 CIM-100-08-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Shielding: Ultra flexible, braided shields, with 90% nominal coverage
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Flex Life: 10,000,000 cycles nominal
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
