USB Cable

USB Cable
  • USB 2.0 and 3.0 Available
  • Ideal for High Performance Data Transmission Applications
  • Ultra Flexible Cable for Confined Area and Continuous Motion

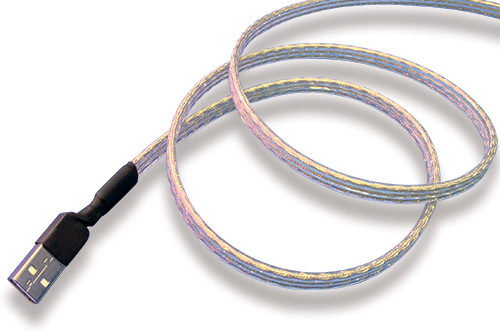

Comprised of 2 individually shielded power wires and 1 twisted shielded pair of 100 ohm twinaxial configuration for USB 2.0 and 3 twisted pairs of 100 ohm twinaxial configuration for USB 3.0, Cicoil’s FlexxSil™ jacketed USB cables are designed for highly demanding applications. Unlike typical USB cables, the Cicoil cable has been designed for high flexibility, mechanical stress, temperature extremes and harsh environments. And the flat cable construction guarantees clear, high speed data transmission, even in the toughest of environments.

Applications Indoor and outdoor USB applications

USB Cable
  • Narrow Your Selection

    Type
    Amp Rating - Power
    Amp Rating - Signal
    Type
    Amp Rating - Power
    Amp Rating - Signal
    Part Number
    USB 2.0
    7
    3
    USB-2000

    Bulk Cable

    • Type: USB 2.0
    • Amp Rating - Power: 7
    • Amp Rating - Signal: 3
    • Conductor Gauge - Power: 24 AWG/2c
    • Conductor Gauge - Signal: 30 AWG/1 pr
    • A - Width (inches): 0.31
    • B - Height (inches): 0.15
    USB-2000
    Part Numbers Price per foot
    USB-2000 LOGIN Buy Now

    Complete Assemblies

    Host-To-Host Signal (J1): USB Type A, P/N A-USBPA-3-R USB-2000
    Cable Length (ft) Part Numbers Price
    3 USB-2000-CAH003 LOGIN Buy Now
    6 USB-2000-CAH006 LOGIN Buy Now
    12 USB-2000-CAH012 LOGIN Buy Now
    Host-To-Peripheral Signal (J1): USB Type A, P/N A-USBPA-3-R
    Signal (J2): USB Type B, P/N B-USBPB-3-R USB-2000
    Cable Length (ft) Part Numbers Price
    3 USB-2000-CAP003 LOGIN Buy Now
    6 USB-2000-CAP006 LOGIN Buy Now
    12 USB-2000-CAP012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    USB 3.0
    10
    5
    USB-3000

    Bulk Cable

    • Type: USB 3.0
    • Amp Rating - Power: 10
    • Amp Rating - Signal: 5
    • Conductor Gauge - Power: 24 AWG/2c
    • Conductor Gauge - Signal: 28 AWG/3 pr
    • A - Width (inches): 0.62
    • B - Height (inches): 0.18
    USB-3000
    Part Numbers Price per foot
    USB-3000 LOGIN Order Now

    Complete Assemblies

    Host-To-Host Signal (J1): USB Type A, P/N A-USBPA-3-R USB-3000
    Cable Length (ft) Part Numbers Price
    3 USB-3000-CAH003 LOGIN Buy Now
    6 USB-3000-CAH006 LOGIN Buy Now
    12 USB-3000-CAH012 LOGIN Order Now
    Host-To-Peripheral Signal (J1): USB Type A, P/N A-USBPA-3-R USB-3000
    Cable Length (ft) Part Numbers Price
    3 USB-3000-CAP003 LOGIN Buy Now
    6 USB-3000-CAP006 LOGIN Buy Now
    12 USB-3000-CAP012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Shielding: Ultra flexible, braided shields, with 90% nominal coverage
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Flex Life: 10,000,000 cycles nominal
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
