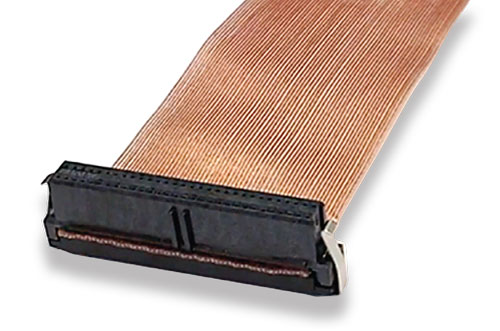

Ultra Flexible Micro IDC Ribbon Cable

Ultra Flexible Micro IDC Ribbon Cable
  • Light, flexible design routes easily in tight spaces
  • .025˝ Pitch works with any Micro IDC connector
  • Standard sizes available with up to 64 conductors
  • Rated for Temperatures from -65°C to +260°C

Cicoil’s .025˝ Micro IDC Cable is excellent for tight spacing applications that require dependable signal density. The Ultra Flexible cable performs exceptionally well in harsh environments, including high/low temperatures, and under exposure to moisture and most chemicals.

Applications Aerospace, Robotics, Medical, Semiconductor, Surgical Systems, Printer Head, Satellites, Board-to-Board

Ultra Flexible Micro IDC Ribbon Cable
  • Narrow Your Selection

    No. of Conductors
    No. of Conductors
    Part Number
    30 AWG .025"
    10
    482W101-10

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 10
    • Amp Rating: 0.2
    • A - Width (inches): 0.250
    • B - Height (inches): 0.026
    • C - Span (inches): 0.225
    482W101-10
    Part Numbers Price per foot
    482W101-10 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-10
    Cable Length (ft) Part Numbers Price
    3 482W101-10-CA003 LOGIN Buy Now
    6 482W101-10-CA006 LOGIN Buy Now
    12 482W101-10-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    14
    482W101-14

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 14
    • Amp Rating: 0.2
    • A - Width (inches): 0.350
    • B - Height (inches): 0.026
    • C - Span (inches): 0.325
    482W101-14
    Part Numbers Price per foot
    482W101-14 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-14
    Cable Length (ft) Part Numbers Price
    3 482W101-14-CA003 LOGIN Buy Now
    6 482W101-14-CA006 LOGIN Buy Now
    12 482W101-14-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    16
    482W101-16

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 16
    • Amp Rating: 0.2
    • A - Width (inches): 0.400
    • B - Height (inches): 0.026
    • C - Span (inches): 0.375
    482W101-16
    Part Numbers Price per foot
    482W101-16 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-16
    Cable Length (ft) Part Numbers Price
    3 482W101-16-CA003 LOGIN Buy Now
    6 482W101-16-CA006 LOGIN Buy Now
    12 482W101-16-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    20
    482W101-20

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 20
    • Amp Rating: 0.2
    • A - Width (inches): 0.500
    • B - Height (inches): 0.026
    • C - Span (inches): 0.475
    482W101-20
    Part Numbers Price per foot
    482W101-20 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-20
    Cable Length (ft) Part Numbers Price
    3 482W101-20-CA003 LOGIN Buy Now
    6 482W101-20-CA006 LOGIN Buy Now
    12 482W101-20-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    26
    482W101-26

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 26
    • Amp Rating: 0.2
    • A - Width (inches): 0.650
    • B - Height (inches): 0.026
    • C - Span (inches): 0.625
    482W101-26
    Part Numbers Price per foot
    482W101-26 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-26
    Cable Length (ft) Part Numbers Price
    3 482W101-26-CA003 LOGIN Buy Now
    6 482W101-26-CA006 LOGIN Buy Now
    12 482W101-26-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    28
    482W101-28

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 28
    • Amp Rating: 0.2
    • A - Width (inches): 0.700
    • B - Height (inches): 0.026
    • C - Span (inches): 0.675
    482W101-28
    Part Numbers Price per foot
    482W101-28 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-28
    Cable Length (ft) Part Numbers Price
    3 482W101-28-CA003 LOGIN Buy Now
    6 482W101-28-CA006 LOGIN Buy Now
    12 482W101-28-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    30
    482W101-30

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 30
    • Amp Rating: 0.2
    • A - Width (inches): 0.750
    • B - Height (inches): 0.026
    • C - Span (inches): 0.725
    482W101-30
    Part Numbers Price per foot
    482W101-30 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-30
    Cable Length (ft) Part Numbers Price
    3 482W101-30-CA003 LOGIN Buy Now
    6 482W101-30-CA006 LOGIN Buy Now
    12 482W101-30-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    34
    482W101-34

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 34
    • Amp Rating: 0.2
    • A - Width (inches): 0.850
    • B - Height (inches): 0.026
    • C - Span (inches): 0.825
    482W101-34
    Part Numbers Price per foot
    482W101-34 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-34
    Cable Length (ft) Part Numbers Price
    3 482W101-34-CA003 LOGIN Buy Now
    6 482W101-34-CA006 LOGIN Buy Now
    12 482W101-34-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    40
    482W101-40

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 40
    • Amp Rating: 0.2
    • A - Width (inches): 1.000
    • B - Height (inches): 0.026
    • C - Span (inches): 0.975
    482W101-40
    Part Numbers Price per foot
    482W101-40 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-40
    Cable Length (ft) Part Numbers Price
    3 482W101-40-CA003 LOGIN Buy Now
    6 482W101-40-CA006 LOGIN Buy Now
    12 482W101-40-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    44
    482W101-44

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 44
    • Amp Rating: 0.2
    • A - Width (inches): 1.100
    • B - Height (inches): 0.026
    • C - Span (inches): 1.075
    482W101-44
    Part Numbers Price per foot
    482W101-44 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-44
    Cable Length (ft) Part Numbers Price
    3 482W101-44-CA003 LOGIN Buy Now
    6 482W101-44-CA006 LOGIN Buy Now
    12 482W101-44-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    50
    482W101-50

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 50
    • Amp Rating: 0.2
    • A - Width (inches): 1.250
    • B - Height (inches): 0.026
    • C - Span (inches): 1.225
    482W101-50
    Part Numbers Price per foot
    482W101-50 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-50
    Cable Length (ft) Part Numbers Price
    3 482W101-50-CA003 LOGIN Buy Now
    6 482W101-50-CA006 LOGIN Buy Now
    12 482W101-50-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    60
    482W101-60

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 60
    • Amp Rating: 0.2
    • A - Width (inches): 1.500
    • B - Height (inches): 0.026
    • C - Span (inches): 1.475
    482W101-60
    Part Numbers Price per foot
    482W101-60 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-60
    Cable Length (ft) Part Numbers Price
    3 482W101-60-CA003 LOGIN Buy Now
    6 482W101-60-CA006 LOGIN Buy Now
    12 482W101-60-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    30 AWG .025"
    64
    482W101-64

    Bulk Cable

    • Gauge Pitch: 30 AWG .025"
    • No. of Conductors: 64
    • Amp Rating: 0.2
    • A - Width (inches): 1.600
    • B - Height (inches): 0.026
    • C - Span (inches): 1.575
    482W101-64
    Part Numbers Price per foot
    482W101-64 LOGIN Buy Now

    Complete Assemblies

    Signal (J1): CnC Tech or equivalent (XX = Position Quantity) .025˝ Pitch: P/N 3230-XX-0103-00 482W101-64
    Cable Length (ft) Part Numbers Price
    3 482W101-64-CA003 LOGIN Buy Now
    6 482W101-64-CA006 LOGIN Buy Now
    12 482W101-64-CA012 LOGIN Buy Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
