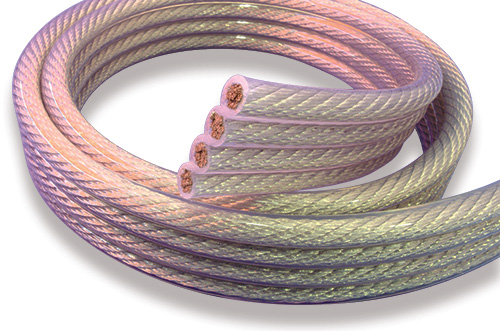

Flexx-Sil™ Hi-Temp Festoon Cable

Flexx-Sil™ Hi-Temp Festoon Cable
  • Rated from -65°C to +165°C
  • Ultra Flexible Alternative to PVC & Neoprene Festoon Cables
  • Available in 18 AWG to 4 AWG Configurations

Cicoil’s line of Flexx-Sil™ Festoon Cables are designed for continuous flexing, extreme temperature and higher voltage requirement applications. These UV-radiation resistant cables are an excellent alternative to PVC and Neoprene jacketed flat cables that do not provide reliability in severe environments. The clear Flexx-Sil™ jacket makes the cables highly flexible and ideal for extreme temperatures and harsh environments.

Applications Festoon Systems, Gantries, Telescoping Jetways, Conveyors, Car Washes

Flexx-Sil™ Hi-Temp Festoon Cable
  • Narrow Your Selection

    Amp Rating
    No. of Conductors
    Amp Rating
    No. of Conductors
    Part Number
    15
    4
    CFC-18-4

    Bulk Cable

    • Amp Rating: 15
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 18 AWG
    • A - Width (inches): 0.43
    • B - Height (inches): 0.14
    CFC-18-4
    Part Numbers Price per foot
    CFC-18-4 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 9-Pos Housing - MOLEX, P/N 3092092 CFC-18-4
    Cable Length (ft) Part Numbers Price
    3 CFC-18-4-CA003 LOGIN Order Now
    6 CFC-18-4-CA006 LOGIN Order Now
    12 CFC-18-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    19
    4
    CFC-16-4

    Bulk Cable

    • Amp Rating: 19
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.48
    • B - Height (inches): 0.15
    CFC-16-4
    Part Numbers Price per foot
    CFC-16-4 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 CFC-16-4
    Cable Length (ft) Part Numbers Price
    3 CFC-16-4-CA003 LOGIN Order Now
    6 CFC-16-4-CA006 LOGIN Order Now
    12 CFC-16-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    19
    8
    CFC-16-8

    Bulk Cable

    • Amp Rating: 19
    • No. of Conductors: 8
    • Volts DC: 20K
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 0.92
    • B - Height (inches): 0.15
    CFC-16-8
    Part Numbers Price per foot
    CFC-16-8 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 CFC-16-8
    Cable Length (ft) Part Numbers Price
    3 CFC-16-8-CA003 LOGIN Order Now
    6 CFC-16-8-CA006 LOGIN Order Now
    12 CFC-16-8-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    19
    12
    CFC-16-12

    Bulk Cable

    • Amp Rating: 19
    • No. of Conductors: 12
    • Volts DC: 20K
    • Conductor Gauge: 16 AWG
    • A - Width (inches): 1.36
    • B - Height (inches): 0.15
    CFC-16-12
    Part Numbers Price per foot
    CFC-16-12 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 CFC-16-12
    Cable Length (ft) Part Numbers Price
    3 CFC-16-12-CA003 LOGIN Order Now
    6 CFC-16-12-CA006 LOGIN Order Now
    12 CFC-16-12-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    4
    CFC-14-4

    Bulk Cable

    • Amp Rating: 27
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 14 AWG
    • A - Width (inches): 0.61
    • B - Height (inches): 0.19
    CFC-14-4
    Part Numbers Price per foot
    CFC-14-4 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 CFC-14-4
    Cable Length (ft) Part Numbers Price
    3 CFC-14-4-CA003 LOGIN Order Now
    6 CFC-14-4-CA006 LOGIN Order Now
    12 CFC-14-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    8
    CFC-14-8

    Bulk Cable

    • Amp Rating: 27
    • No. of Conductors: 8
    • Volts DC: 20K
    • Conductor Gauge: 14 AWG
    • A - Width (inches): 1.16
    • B - Height (inches): 0.19
    CFC-14-8
    Part Numbers Price per foot
    CFC-14-8 LOGIN Order Now

    Complete Assemblies

    Gold Contacts - MOLEX, P/N 02-09-6110; 15-Pos Housing - MOLEX, P/N 19-09-2159 CFC-14-8
    Cable Length (ft) Part Numbers Price
    3 CFC-14-8-CA003 LOGIN Order Now
    6 CFC-14-8-CA006 LOGIN Order Now
    12 CFC-14-8-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    36
    4
    CFC-12-4

    Bulk Cable

    • Amp Rating: 36
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 12 AWG
    • A - Width (inches): 0.75
    • B - Height (inches): 0.24
    CFC-12-4
    Part Numbers Price per foot
    CFC-12-4 LOGIN Order Now

    Complete Assemblies

    Ring Lugs - Typical CFC-12-4
    Cable Length (ft) Part Numbers Price
    3 CFC-12-4-CA003 LOGIN Order Now
    6 CFC-12-4-CA006 LOGIN Order Now
    12 CFC-12-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    47
    4
    CFC-10-4

    Bulk Cable

    • Amp Rating: 47
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 10 AWG
    • A - Width (inches): 0.92
    • B - Height (inches): 0.29
    CFC-10-4
    Part Numbers Price per foot
    CFC-10-4 LOGIN Order Now

    Complete Assemblies

    Ring Lugs - Typical CFC-10-4
    Cable Length (ft) Part Numbers Price
    3 CFC-10-4-CA003 LOGIN Order Now
    6 CFC-10-4-CA006 LOGIN Order Now
    12 CFC-10-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    65
    4
    CFC-8-4

    Bulk Cable

    • Amp Rating: 65
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 8 AWG
    • A - Width (inches): 1.17
    • B - Height (inches): 0.35
    CFC-8-4
    Part Numbers Price per foot
    CFC-8-4 LOGIN Order Now

    Complete Assemblies

    Ring Lugs - Typical CFC-8-4
    Cable Length (ft) Part Numbers Price
    3 CFC-8-4-CA003 LOGIN Order Now
    6 CFC-8-4-CA006 LOGIN Order Now
    12 CFC-8-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    95
    4
    CFC-6-4

    Bulk Cable

    • Amp Rating: 95
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 6 AWG
    • A - Width (inches): 1.47
    • B - Height (inches): 0.40
    CFC-6-4
    Part Numbers Price per foot
    CFC-6-4 LOGIN Order Now

    Complete Assemblies

    Ring Lugs - Typical CFC-6-4
    Cable Length (ft) Part Numbers Price
    3 CFC-6-4-CA003 LOGIN Order Now
    6 CFC-6-4-CA006 LOGIN Order Now
    12 CFC-6-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    125
    4
    CFC-4-4

    Bulk Cable

    • Amp Rating: 125
    • No. of Conductors: 4
    • Volts DC: 20K
    • Conductor Gauge: 4 AWG
    • A - Width (inches): 1.64
    • B - Height (inches): 0.47
    CFC-4-4
    Part Numbers Price per foot
    CFC-4-4 LOGIN Order Now

    Complete Assemblies

    Ring Lugs - Typical CFC-4-4
    Cable Length (ft) Part Numbers Price
    3 CFC-4-4-CA003 LOGIN Order Now
    6 CFC-4-4-CA006 LOGIN Order Now
    12 CFC-4-4-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C (higher temperatures available)
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
