EZ-Flexx™ Motion Series Plus

EZ-Flexx™ Motion Series Plus
  • Ideal for Hi-Flex Motion Applications
  • Shielded Power and Signal Wires in a Compact Flat Cable
  • For 1, 2 or 3 Servo Axes
  • Rated for More Than 10 Million Flexing Cycles
  • Easy to Separate and Strip

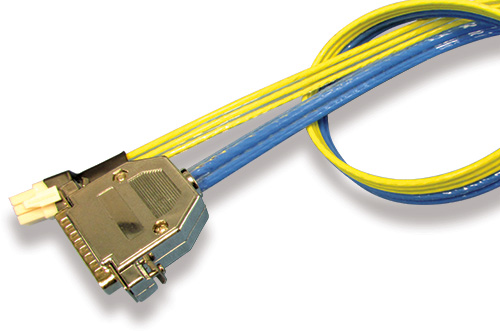

Cicoil’s EZ-Flexx™ Motion Series Plus cable is available in a single axis design that may be ganged for 1, 2 or 3 axes servo motion. Each EZ-Flexx™ Motion Series Plus cable integrates 6 power conductors and 20 signal wires in a compact flat cable measuring just 0.84” wide by 0.19” thick. The Flexx-Sil™ encapsulation provides a solid, one-piece construction that creates a highly durable, flexible flat cable package.

Applications Linear Motors, Servo and Stepper Motors

EZ-Flexx™ Motion Series Plus
  • Narrow Your Selection

    No. of Axis
    No. of Axis
    Part Number
    1
    MCZ-1000-1

    Bulk Cable

    • No. of Axis: 1
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/3 pr
    • Conductor Gauge - Signal: 28 AWG/10 pr
    • A - Width (inches): 0.84
    • B - Height (inches): 0.19
    MCZ-1000-1
    Part Numbers Price per foot
    MCZ-1000-1 LOGIN Order Now

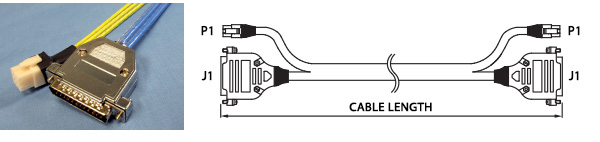

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCZ-1000-1
    Cable Length (ft) Part Numbers Price
    3 MCZ-1000-1-CA003 LOGIN Order Now
    6 MCZ-1000-1-CA006 LOGIN Order Now
    12 MCZ-1000-1-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    2
    MCZ-1000-2

    Bulk Cable

    • No. of Axis: 2
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/6 pr
    • Conductor Gauge - Signal: 28 AWG/20 pr
    • Option 1:
    • A1 - Width (inches): 1.68
    • B1 - Height (inches): 0.19
    • Option 2:
    • A2 - Width (inches): 0.84
    • B2 - Height (inches): 0.36
    MCZ-1000-2
    Part Numbers Price per foot
    MCZ-1000-2 LOGIN Order Now

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCZ-1000-2
    Cable Length (ft) Part Numbers Price
    3 MCZ-1000-2-CA003 LOGIN Order Now
    6 MCZ-1000-2-CA006 LOGIN Order Now
    12 MCZ-1000-2-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    MCZ-1000-3

    Bulk Cable

    • No. of Axis: 3
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/9 pr
    • Conductor Gauge - Signal: 28 AWG/30 pr
    • Option 1:
    • A1 - Width (inches): 2.52
    • B1 - Height (inches): 0.19
    • Option 2:
    • A2 - Width (inches): 0.84
    • B2 - Height (inches): 0.55
    MCZ-1000-3
    Part Numbers Price per foot
    MCZ-1000-3 LOGIN Order Now

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCZ-1000-3
    Cable Length (ft) Part Numbers Price
    3 MCZ-1000-3-CA003 LOGIN Order Now
    6 MCZ-1000-3-CA006 LOGIN Order Now
    12 MCZ-1000-3-CA012 LOGIN Order Now

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-670-2809

    Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

  • Mechanical

    • Conductors: Ultra flexible, finely stranded, tinned copper
    • Shielding: Ultra flexible, braided shields, with 90% nominal coverage
    • Minimum Bend Radius:
    • - 6x cable height for intermediate flex
    • - 10x cable height for continuous flex
    • Flex Life: 10,000,000 cycles nominal
    • Outer Jacket Durometer Rating: 65 (Shore A)

    Environmental

    • Temperature Rating: -65°C to +165°C
    • Moisture Rating: Submersible, Salt Water Resistant
    • Clean Room Rating: Class 1, Zero Particulates
    • Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant

    Electrical

    • Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
