Hi-Flex Unshielded Single Conductor Power Cable

Hi-Flex Unshielded Single Conductor Power Cable
  • Ideal for Power Applications Requiring Voltages up to 42,000 Volts DC
  • Excellent Alternative to PVC & Teflon® Wire in Confined Area and Motion Applications
  • Available from 4 AWG to 30 AWG
  • Low Smoke/Zero Halogen (LSZH)

Cicoil’s Hi-Flex Unshielded Single Conductor Cable is ideal for high voltage and extreme temperature applications. Ultra-flexible, finely stranded wire conductors are used for maximum flexibility and long life in dynamic, flexing applications. Cicoil’s patented extrusion process encapsulates the wire conductor in a crystal clear, flexible, yet very durable Flexx-Sil™ insulation.

Multi-Conductor versions of this cable are here»

Applications Aerospace, Solar Panel, Robotics, Medical, Oil Drilling, Wind Turbine, Welding

Catalog Page
Hi-Flex Unshielded Single Conductor Power Cable

  • Narrow Your Selection

    Amp Rating
    Volts DC
    Amp Rating
    Volts DC
    Part Number
    3
    10K
    969M101-30-1
    Details

    Bulk Cable

    • Amp Rating: 3
    • Volts DC: 10K
    • Conductor Gauge: 30 AWG
    • Diameter (inches): 0.21
    969M101-30-1
    Part Numbers Price per foot Order Through
    969M101-30-1 LOGIN Digi-Key

    Complete Assemblies

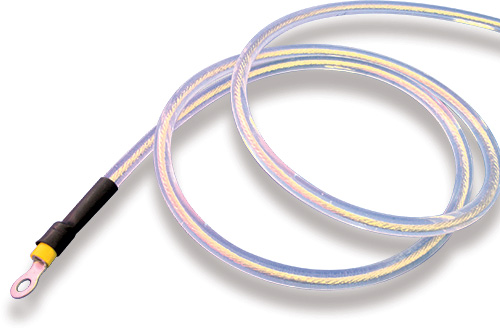

    Ring Lugs - Typical 969M101-30-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-30-1-CA003 LOGIN Cicoil
    6 969M101-30-1-CA006 LOGIN Cicoil
    12 969M101-30-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    5
    12K
    969M101-28-1
    Details

    Bulk Cable

    • Amp Rating: 5
    • Volts DC: 12K
    • Conductor Gauge: 28 AWG
    • A - Diameter (inches): 0.21
    969M101-28-1
    Part Numbers Price per foot Order Through
    969M101-28-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-28-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-28-1-CA003 LOGIN Cicoil
    6 969M101-28-1-CA006 LOGIN Cicoil
    12 969M101-28-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    6
    12K
    969M101-26-1
    Details

    Bulk Cable

    • Amp Rating: 6
    • Volts DC: 12K
    • Conductor Gauge: 26 AWG
    • A - Diameter (inches): 0.22
    969M101-26-1
    Part Numbers Price per foot Order Through
    969M101-26-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-26-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-26-1-CA003 LOGIN Cicoil
    6 969M101-26-1-CA006 LOGIN Cicoil
    12 969M101-26-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    7
    12K
    969M101-24-1
    Details

    Bulk Cable

    • Amp Rating: 7
    • Volts DC: 12K
    • Conductor Gauge: 24 AWG
    • A - Diameter (inches): 0.22
    969M101-24-1
    Part Numbers Price per foot Order Through
    969M101-24-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-24-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-24-1-CA003 LOGIN Cicoil
    6 969M101-24-1-CA006 LOGIN Cicoil
    12 969M101-24-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    8
    31K
    969M101-22-1
    Details

    Bulk Cable

    • Amp Rating: 8
    • Volts DC: 31K
    • Conductor Gauge: 22 AWG
    • A - Diameter (inches): 0.23
    969M101-22-1
    Part Numbers Price per foot Order Through
    969M101-22-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-22-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-22-1-CA003 LOGIN Cicoil
    6 969M101-22-1-CA006 LOGIN Cicoil
    12 969M101-22-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    10
    31K
    969M101-20-1
    Details

    Bulk Cable

    • Amp Rating: 10
    • Volts DC: 31K
    • Conductor Gauge: 20 AWG
    • A - Diameter (inches): 0.24
    969M101-20-1
    Part Numbers Price per foot Order Through
    969M101-20-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-20-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-20-1-CA003 LOGIN Cicoil
    6 969M101-20-1-CA006 LOGIN Cicoil
    12 969M101-20-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    15
    42K
    969M101-18-1
    Details

    Bulk Cable

    • Amp Rating: 15
    • Volts DC: 42K
    • Conductor Gauge: 18 AWG
    • A - Diameter (inches): 0.25
    969M101-18-1
    Part Numbers Price per foot Order Through
    969M101-18-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-18-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-18-1-CA003 LOGIN Cicoil
    6 969M101-18-1-CA006 LOGIN Cicoil
    12 969M101-18-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    19
    42K
    969M101-16-1
    Details

    Bulk Cable

    • Amp Rating: 19
    • Volts DC: 42K
    • Conductor Gauge: 16 AWG
    • A - Diameter (inches): 0.26
    969M101-16-1
    Part Numbers Price per foot Order Through
    969M101-16-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-16-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-16-1-CA003 LOGIN Cicoil
    6 969M101-16-1-CA006 LOGIN Cicoil
    12 969M101-16-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    27
    42K
    969M101-14-1
    Details

    Bulk Cable

    • Amp Rating: 27
    • Volts DC: 42K
    • Conductor Gauge: 14 AWG
    • A - Diameter (inches): 0.28
    969M101-14-1
    Part Numbers Price per foot Order Through
    969M101-14-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-14-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-14-1-CA003 LOGIN Cicoil
    6 969M101-14-1-CA006 LOGIN Cicoil
    12 969M101-14-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    36
    42K
    969M101-12-1
    Details

    Bulk Cable

    • Amp Rating: 36
    • Volts DC: 42K
    • Conductor Gauge: 12 AWG
    • A - Diameter (inches): 0.30
    969M101-12-1
    Part Numbers Price per foot Order Through
    969M101-12-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-12-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-12-1-CA003 LOGIN Cicoil
    6 969M101-12-1-CA006 LOGIN Cicoil
    12 969M101-12-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    47
    42K
    969M101-10-1
    Details

    Bulk Cable

    • Amp Rating: 47
    • Volts DC: 42K
    • Conductor Gauge: 10 AWG
    • A - Diameter (inches): 0.33
    969M101-10-1
    Part Numbers Price per foot Order Through
    969M101-10-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-10-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-10-1-CA003 LOGIN Cicoil
    6 969M101-10-1-CA006 LOGIN Cicoil
    12 969M101-10-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    65
    42K
    969M101-8-1
    Details

    Bulk Cable

    • Amp Rating: 65
    • Volts DC: 42K
    • Conductor Gauge: 8 AWG
    • A - Diameter (inches): 0.39
    969M101-8-1
    Part Numbers Price per foot Order Through
    969M101-8-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-8-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-8-1-CA003 LOGIN Cicoil
    6 969M101-8-1-CA006 LOGIN Cicoil
    12 969M101-8-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    95
    42K
    969M101-6-1
    Details

    Bulk Cable

    • Amp Rating: 95
    • Volts DC: 42K
    • Conductor Gauge: 6 AWG
    • A - Diameter (inches): 0.44
    969M101-6-1
    Part Numbers Price per foot Order Through
    969M101-6-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-6-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-6-1-CA003 LOGIN Cicoil
    6 969M101-6-1-CA006 LOGIN Cicoil
    12 969M101-6-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    125
    42K
    969M101-4-1
    Details

    Bulk Cable

    • Amp Rating: 125
    • Volts DC: 42K
    • Conductor Gauge: 4 AWG
    • A - Diameter (inches): 0.50
    969M101-4-1
    Part Numbers Price per foot Order Through
    969M101-4-1 LOGIN Digi-Key

    Complete Assemblies

    Ring Lugs - Typical 969M101-4-1
    Cable Length (ft) Part Numbers Price Order Through
    3 969M101-4-1-CA003 LOGIN Digi-Key
    6 969M101-4-1-CA006 LOGIN Digi-Key
    12 969M101-4-1-CA012 LOGIN Digi-Key

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
