Thermocouple Cable
- Ideal for Control Instrumentation & Temperature Sensing Applications
- Rated from -65°C to +260°C
- Available in Type J & Type K Versions with 1 - 8 Conductors

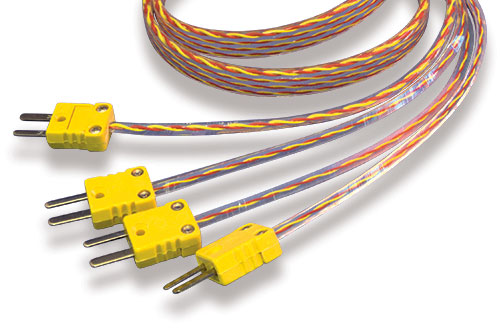

Cicoil Thermocouple Cables are ideal for high performance temperature sensing applications, where flexibility and reliability are needed. Available in flat cables, with up to 8 thermocouples, and encased in Cicoil’s clear Flexx-Sil™ jacketing, these cables provide high performance and compact packaging for the most demanding thermocouple applications.
Applications Temperature Sensing, Heating & Air Conditioning, Cooking Equipment
-
Narrow Your Selection
Thermocouple Type
No. of Paired Conductors
Thermocouple TypeNo. of Paired ConductorsPart NumberJ1TC-J-01Bulk Cable
- Thermocouple Type: J
- No. of Paired Conductors: 1
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.14
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-J-M
Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
J2TC-J-02Bulk Cable
- Thermocouple Type: J
- No. of Paired Conductors: 2
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.27
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-J-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
J4TC-J-04Bulk Cable
- Thermocouple Type: J
- No. of Paired Conductors: 4
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.54
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-J-M
Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
J8TC-J-08Bulk Cable
- Thermocouple Type: J
- No. of Paired Conductors: 8
- Conductor Gauge: 28 AWG
- A - Width (inches): 1.08
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-J-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
K1TC-K-01Bulk Cable
- Thermocouple Type: K
- No. of Paired Conductors: 1
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.14
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-K-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
K2TC-K-02Bulk Cable
- Thermocouple Type: K
- No. of Paired Conductors: 2
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.27
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-K-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
K4TC-K-04Bulk Cable
- Thermocouple Type: K
- No. of Paired Conductors: 4
- Conductor Gauge: 28 AWG
- A - Width (inches): 0.54
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-K-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
K8TC-K-08Bulk Cable
- Thermocouple Type: K
- No. of Paired Conductors: 8
- Conductor Gauge: 28 AWG
- A - Width (inches): 1.08
- B - Height (inches): 0.14
Complete Assemblies
Type J Signal (J1): Omega, P/N SMPW-CC-K-M Other connector types available. Please contact Cicoil.
E-mail or Speak to an Engineer: 661-670-2809
Click BUY NOW to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
-
Mechanical
- Conductors:
- - Type J: Ultra Flexible Iron and Constantant
- - Type K: Ultra Flexible Chromel and Alumel
- Minimum Bend Radius:
- - 6x cable height for intermediate flex
- - 10x cable height for continuous flex
- Outer Jacket Durometer Rating: 65 (Shore A)
Environmental
- Temperature Rating: -65°C to +260°C
- Moisture Rating: Submersible, Salt Water Resistant
- Clean Room Rating: Class 1, Zero Particulates
- Extreme Environments: Sunlight, UV Light, Alcohol, Chemical and Oil Resistant
Electrical
- Outer Jacket Dielectric Strength: 450 volts/mil (17.7 kv/mm)
- See Electrical Rating Chart
