Motion Series Plus Cable

Motion Series Plus Cable
  • Ideal for Hi-Flex Motion Applications
  • Shielded Power and Signal Wires in a Compact Flat Cable
  • For 1, 2 or 3 Servo Axes
  • Rated for More Than 10 Million Flexing Cycles
  • Easy to Separate and Strip

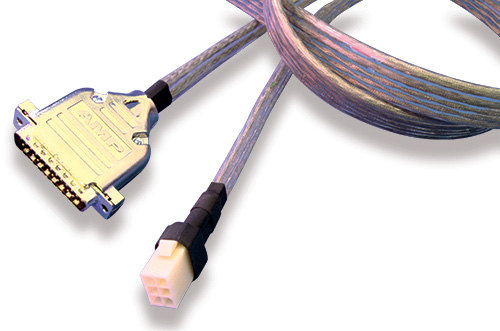

Cicoil’s Motion Series Plus cable is available in a single axis design that may be ganged for 1, 2 or 3 axes servo motion. Each Motion Series Plus cable integrates 6 power conductors and 20 signal wires in a compact flat cable measuring just 0.75” wide by 0.2” thick. The Flexx-Sil™ encapsulation provides a solid, one-piece construction that creates a highly durable, flexible flat cable package.

Applications Linear Motors, Servo and Stepper Motors

Motion Series Plus Cable
  • Narrow Your Selection

    No. of Axis
    No. of Axis
    Part Number
    1
    MCP-2000-1

    Bulk Cable

    • No. of Axis: 1
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/3 pr
    • Conductor Gauge - Signal: 28 AWG/10 pr

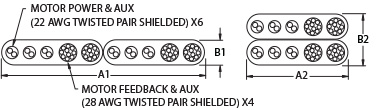

    • A - Width (inches): 0.75
    • B - Height (inches): 0.20
    MCP-2000-1
    Part Numbers Price per foot Order Through
    MCP-2000-1 LOGIN Digi-Key

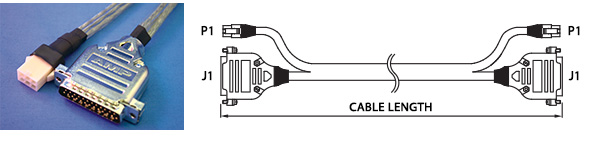

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCP-2000-1
    Cable Length (ft) Part Numbers Price Order Through
    3 MCP-2000-1-CA003 LOGIN Cicoil
    6 MCP-2000-1-CA006 LOGIN Cicoil
    12 MCP-2000-1-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    2
    MCP-2000-2

    Bulk Cable

    • No. of Axis: 2
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/6 pr
    • Conductor Gauge - Signal: 28 AWG/20 pr
    • A - Width (inches): 0.75
    • B - Height (inches): 0.20
    MCP-2000-2
    Part Numbers Price per foot Order Through
    MCP-2000-2 LOGIN Digi-Key

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCP-2000-2
    Cable Length (ft) Part Numbers Price Order Through
    3 MCP-2000-2-CA003 LOGIN Cicoil
    6 MCP-2000-2-CA006 LOGIN Cicoil
    12 MCP-2000-2-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.

    3
    MCP-2000-3

    Bulk Cable

    • No. of Axis: 3
    • Amp Rating: 8
    • Conductor Gauge - Power: 22 AWG/9 pr
    • Conductor Gauge - Signal: 28 AWG/30 pr
    • A - Width (inches): 0.75
    • B - Height (inches): 0.20
    MCP-2000-3
    Part Numbers Price per foot Order Through
    MCP-2000-3 LOGIN Digi-Key

    Complete Assemblies

    Power (P1): Tin Contact - TE, P/N 770904-1; 9-Pos Housing - TE, P/N 172169-1
    Signal (J1): 25-Pin - Amphenol, P/N L717-DB25P; Metallized Shell - TE, P/N 5748677-3 MCP-2000-3
    Cable Length (ft) Part Numbers Price Order Through
    3 MCP-2000-3-CA003 LOGIN Cicoil
    6 MCP-2000-3-CA006 LOGIN Cicoil
    12 MCP-2000-3-CA012 LOGIN Cicoil

    Other connector types available. Please contact Cicoil.

    E-mail or Speak to an Engineer: 661-295-1295 Option 4

    Click the DIGI-KEY order button where available to purchase from Digi-Key Prices shown are Cicoil list prices. DigiKey prices may vary.
